radar level gauge

Maximum liquid level display

Solution

Foreword

Radar level gauges are widely used due to their non-contact measurement, high precision, and strong adaptability. However, in practical applications, users may encounter the problem of the radar level gauge continuously displaying the maximum value, which affects the accuracy of the measurement. This article will analyze the causes of the problem and propose corresponding solutions.

The reason for the maximum liquid level display

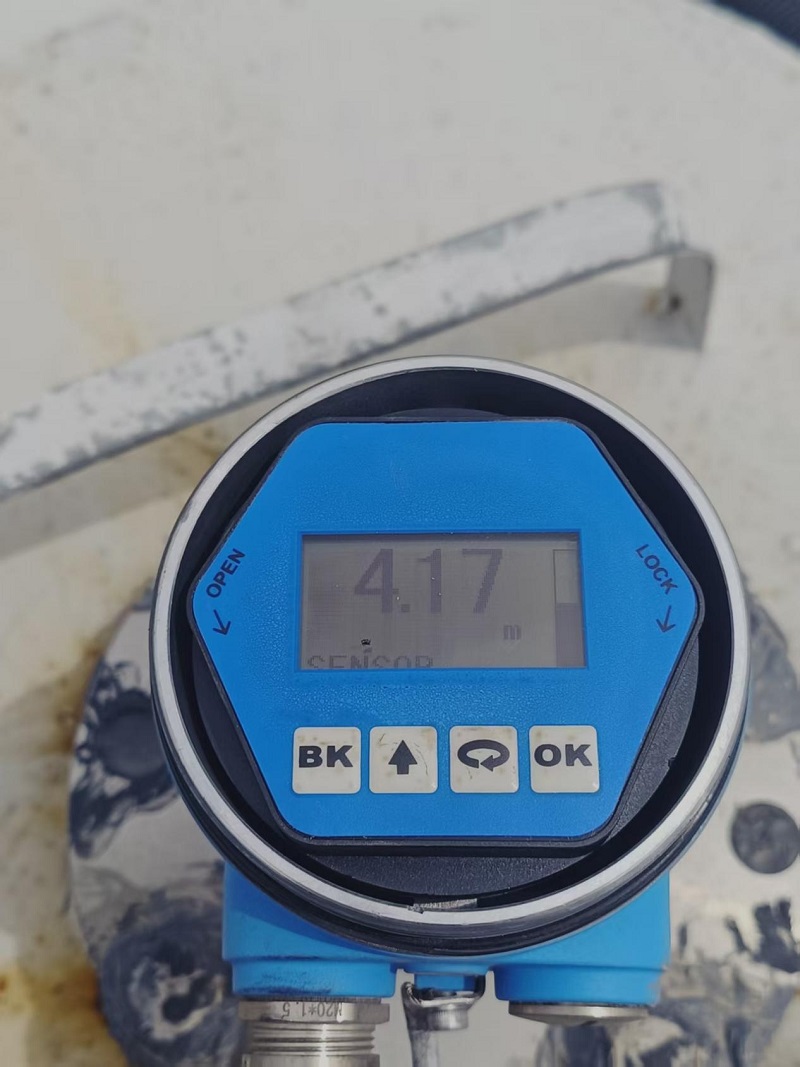

Maximum liquid level value displayed

When the liquid level reading on the display screen of the radar level gauge is abnormally fixed at the maximum value, it usually indicates that the instrument cannot correctly detect the actual liquid level or that there is an abnormality in the signal processing link. Possible reasons are as follows:

01

Improper installation of instruments: If the installation position or angle of the radar level gauge is not suitable, it may cause abnormal signal reflection, resulting in incorrect level readings.

02

Parameter setting error: If the measurement parameters of the instrument are set improperly, such as setting the range too small, it can also cause the displayed value to quickly reach its maximum

03

Equipment failure: including hardware issues such as antenna contamination and electronic component damage, can all lead to instrument failure.

04

External interference: Electromagnetic interference, obstacles inside containers, and other external environmental factors may affect the normal propagation of radar waves.

The method to solve the problem of maximum liquid level display

In response to the above reasons, we can take the following measures to solve the problem:

01

Reinstall calibration: Check and adjust the installation position and angle of the radar level gauge to ensure that it can correctly receive the reflected signal.

02

Adjust parameter settings: Reset instrument parameters based on actual operating conditions, especially range and blind spot settings, to meet the measurement needs on site.

03

Cleaning and maintenance: Regularly clean and maintain the radar level gauge, especially the antenna part, to avoid pollutants affecting signal transmission and reception.

04

Check and replace components: Inspect and replace suspected faulty electronic components to ensure the normal operation of internal circuits.

05

Eliminating external interference: reducing external electromagnetic interference through shielding, filtering, etc., clearing obstacles inside the container, and optimizing the propagation path of radar waves
